E11018M

AWS A5.1 E11018M
ASME SFA 5.1 E11018M

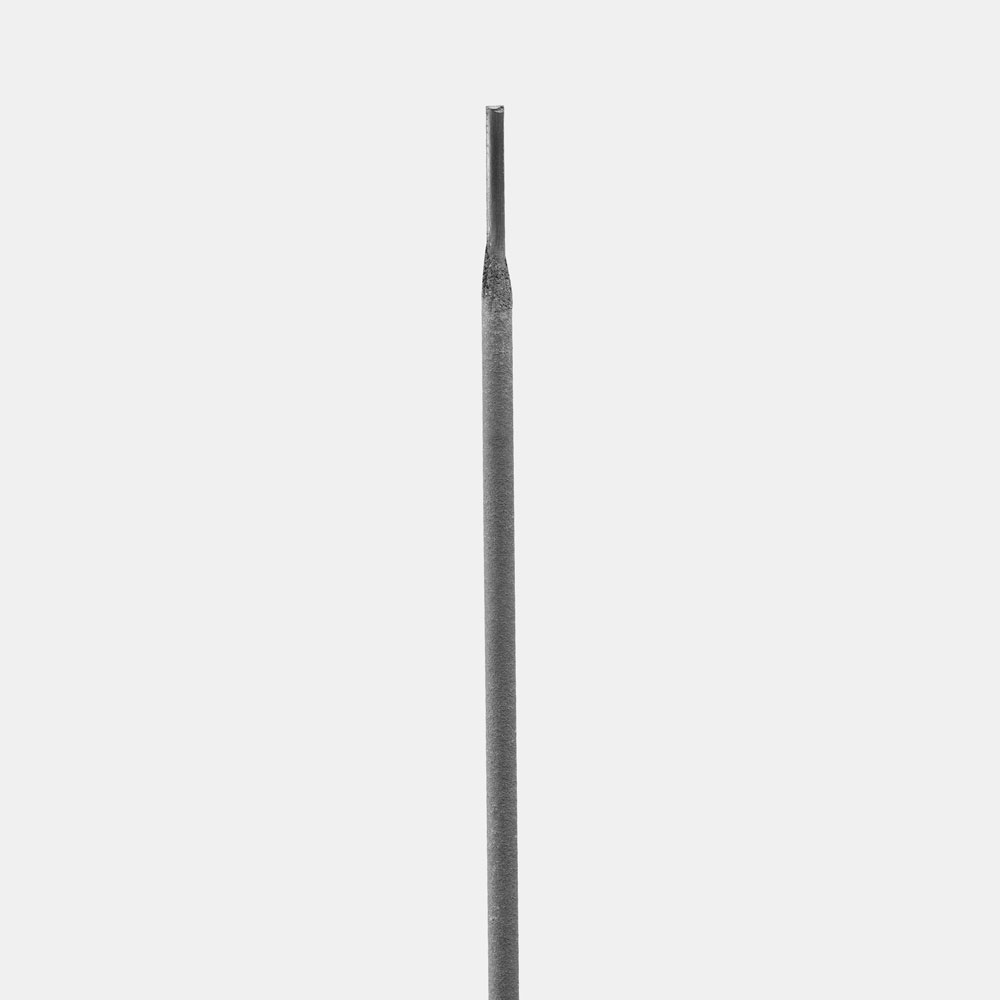

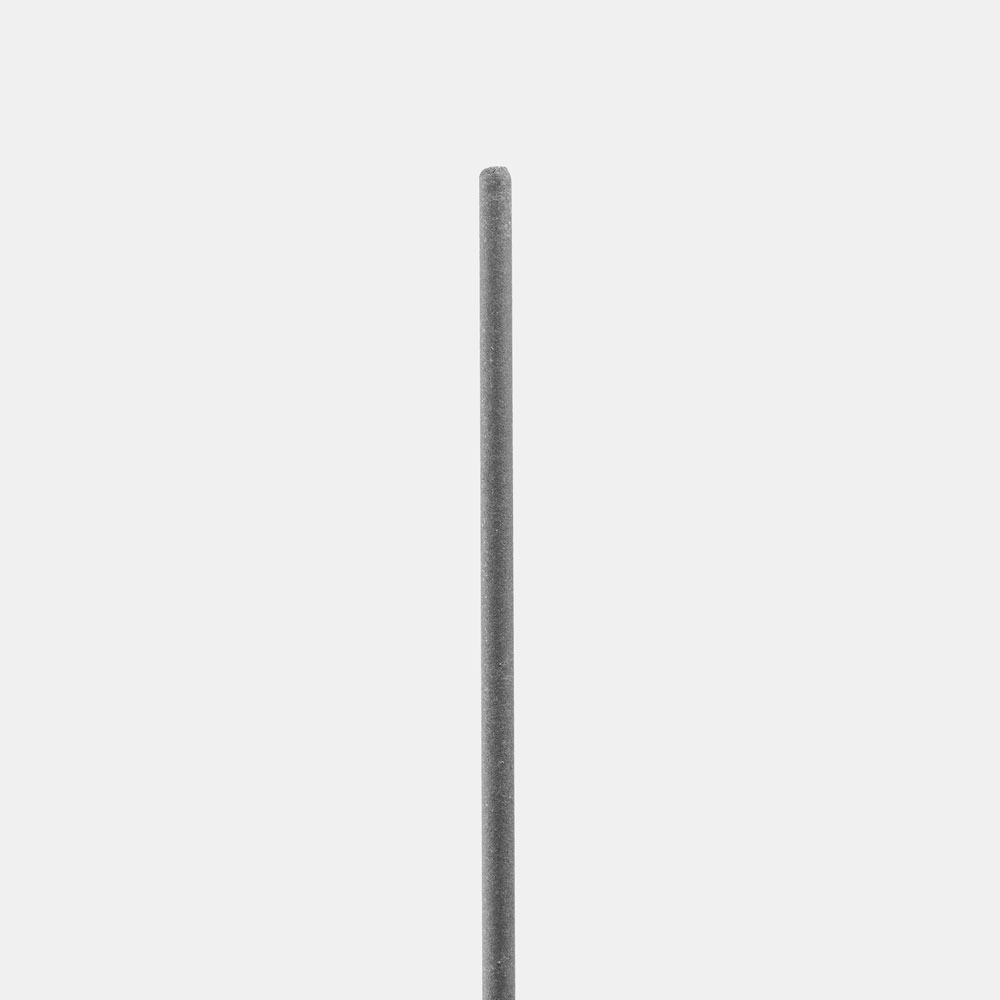

11018M low-alloy steel electrodes are used to weld quenched and tempered steels with tensile strengths of up to 110,00 psi such as ASTM A514 and A517, HY80, T-1, HY100 and SSS-100. It has a smooth running arc that deposits very high tensile strength, which may be used in any position, but they are particularly suited for horizontal and downhand welding. This low hydrogen, iron powder electrode produces a fast efficient medium penetration X-ray quality weld deposit with an easy removable slag.

TYPICAL WELD METAL CHEMISTRY (%)

C

0.08

Mn

1.49

Si

0.41

Ni

1.86

Mo

0.32

TYPICAL MECHANICAL PROPERTIES OF WELD DEPOSIT
(As welded)

Yield strength (psi)

104,000

Tensile strength (psi)

120,000

Elongation in 2" (%)

23%

Charpy V-notch at - 20 degrees

44 ft lbs
