E6010

AWS A5.1 Class E6010
ASME SFA 5.1 E6010

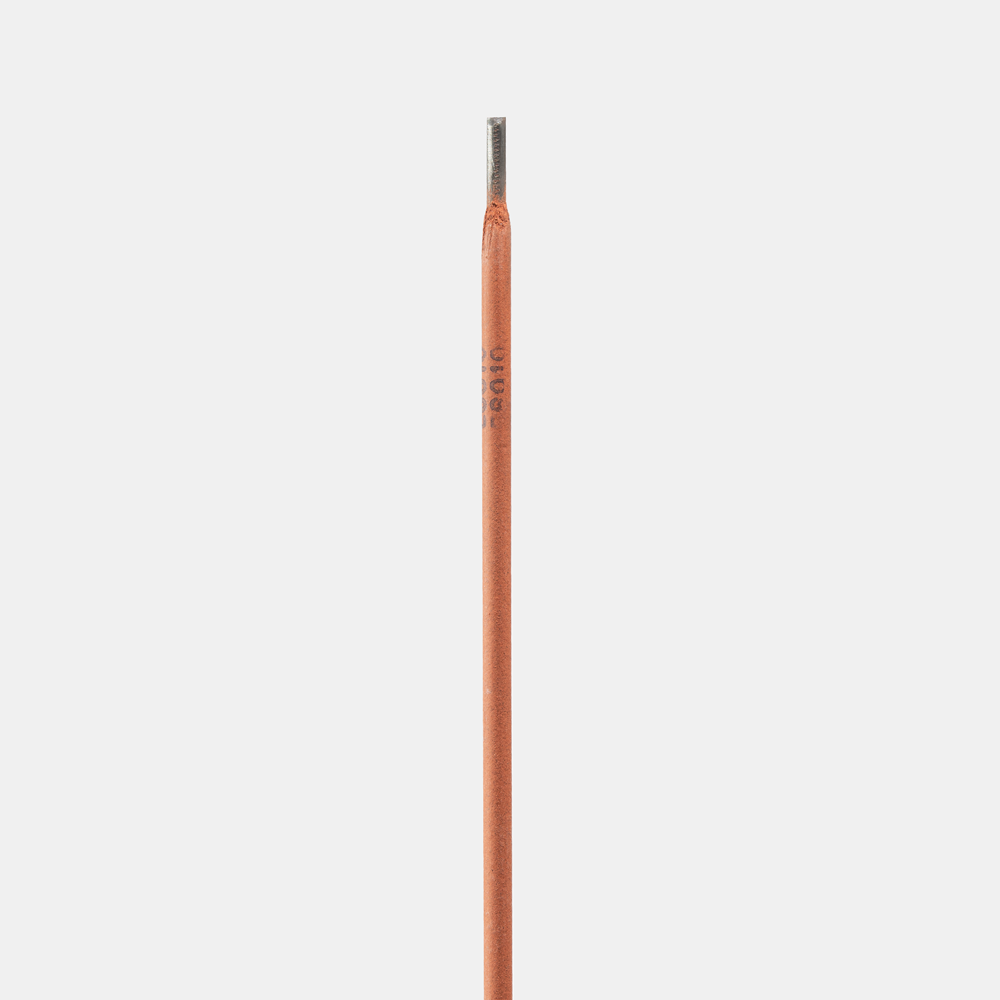

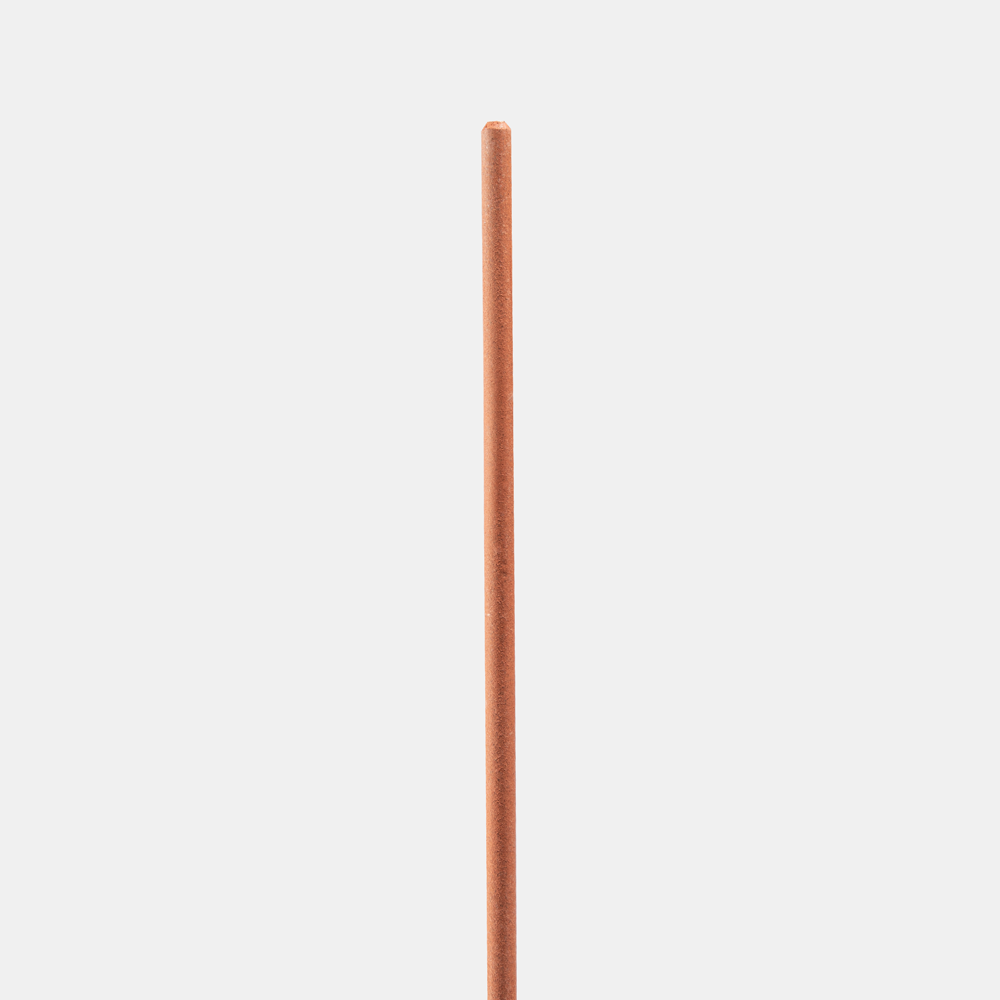

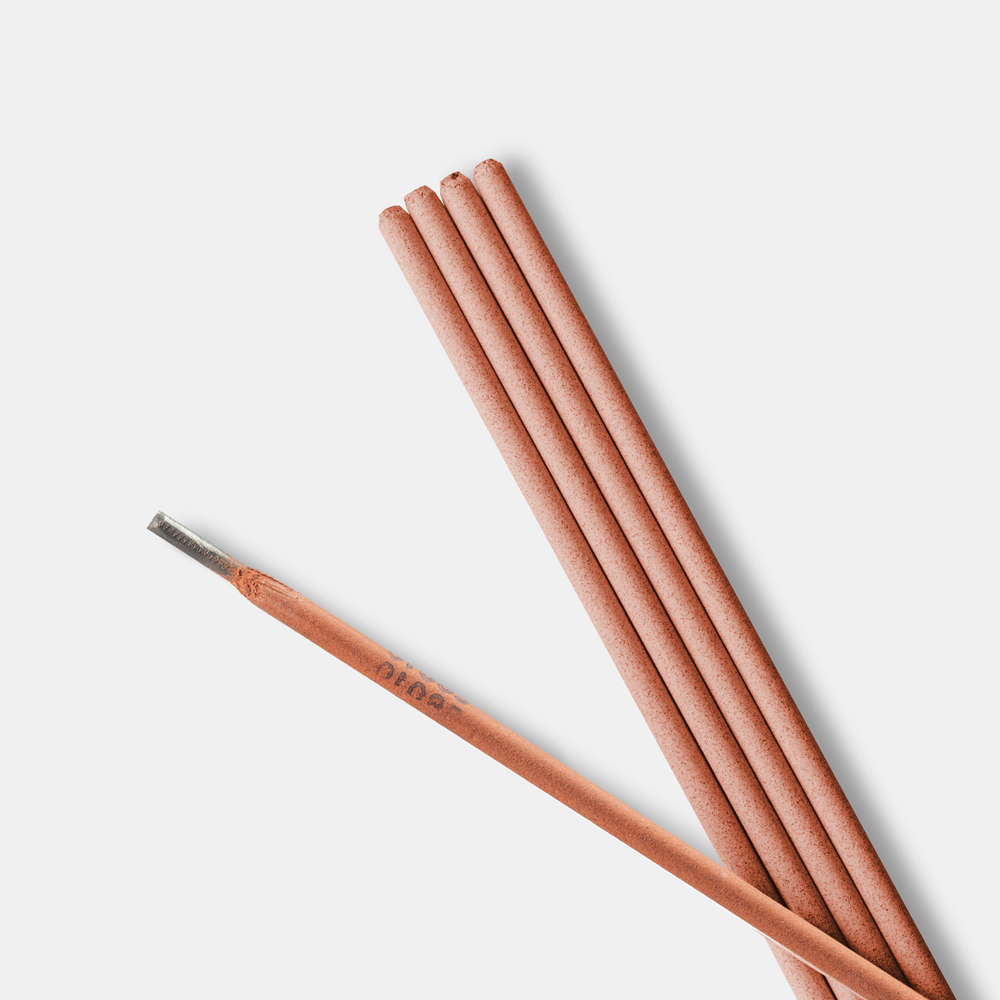

E6010 is a high cellulose coated electrode designed to provide a smooth stable arc forceful enough to achieve deep penetration into the base metal. This electrode exhibits high deposition efficiency and low spatter loss. It produces a weld puddle that wets and spreads well, yet sets up fast enough to make this electrode ideal for vertical up or vertical down welding techniques. E6010 electrodes produce a flat weld bead with coarse ripples and a thin easily removable slag. E6010 electrodes may be used in the flat, horizontal, vertical or overhead welding positions.

Applications:

E6010 electrodes are most commonly used for out-of-position welding such as field construction, ship yards, water towers, pressure vessels, pressure pipes, steel castings, plain and galvanized steel storage tanks, etc.

TYPICAL WELD METAL CHEMISTRY (%)

C

0.100

Mn

0.470

Si

0.200

P

0.14

S

0.012

TYPICAL MECHANICAL PROPERTIES OF WELD DEPOSIT
(As welded)

Yield strength (psi)

61,000 min

Tensile strength (psi)

70,000

Elongation in 2" (%)

30

Charpy V-notch at - 20 degrees

36

Reduction in are (%)

60

AVAILABLE SIZES AND RECOMMENDED CURRENT (DC+)

Diameter (in.)

3/32

1/8

5/32

3/16

7/32

1/4

Length (in.)

14

14

14

14

14

14

Amps F

60-85

80-120

110-160

150-200

160-210

190-240

Amps



V & O

50-70

70-110

110-150

130-170

130-190
