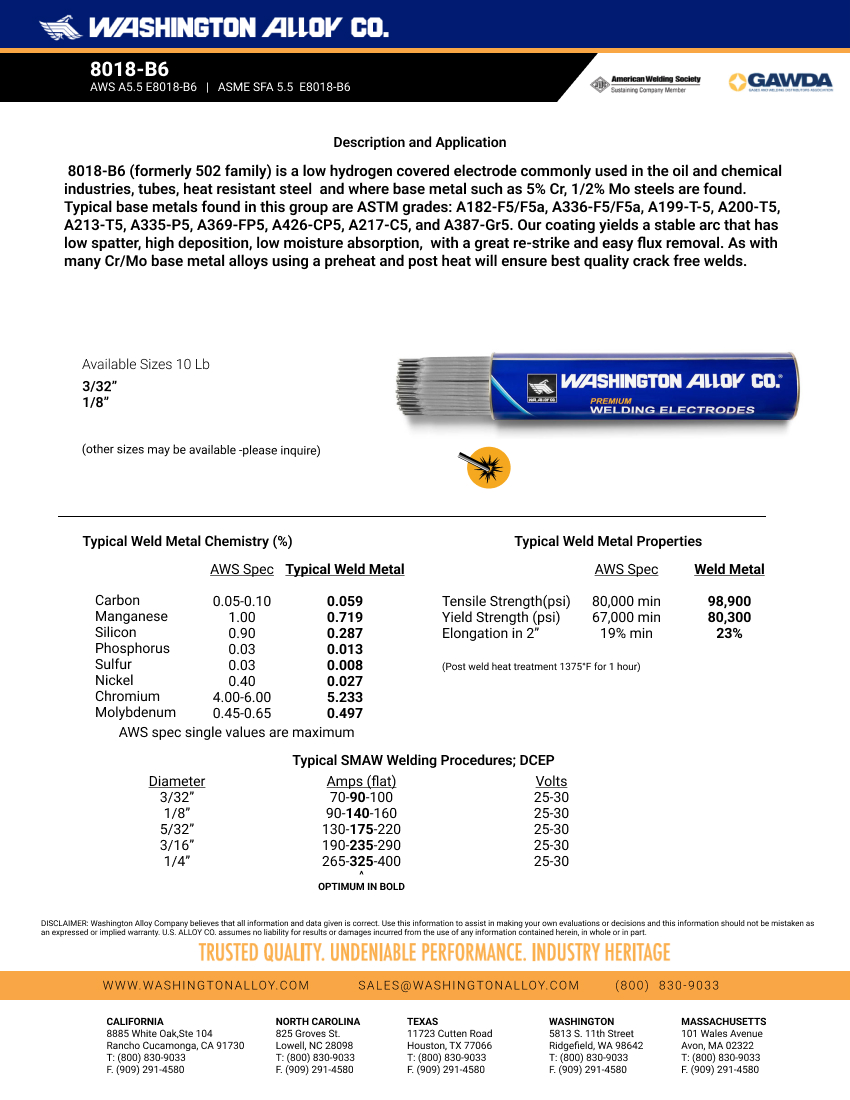

E8018B-B6
AWS A5.5 E8018-B6 | ASME SFA 5.5 E8018-B6
8018-B6 (formerly 502 family) is a low hydrogen covered electrode commonly used in the oil and chemical industries, tubes, heat resistant steel and where base metal such as 5% Cr, 1/2% Mo steels are found. Typical base metals found in this group are ASTM grades: A182-F5/F5a, A336-F5/F5a, A199-T-5, A200-T5, A213-T5, A335-P5, A369-FP5, A426-CP5, A217-C5, and A387-Gr5. Our coating yields a stable arc that has low spatter, high deposition, low moisture absorption, with a great re-strike and easy flux removal. As with many Cr/Mo base metal alloys using a preheat and post heat will ensure best quality crack free welds.
TYPICAL WIRE CHEMISTRY (%)
- | AWS SPEC | TYPICAL WELD METAL |
|---|---|---|
C | 0.05-0.10 | 0.059 |
Mn | 1.00 | 0.719 |
Si | 0.90 | 0.287 |
P | 0.03 | 0.013 |
S | 0.03 | 0.008 |
Ni | 0.40 | 0.027 |
Cr | 4.00-6.00 | 5.233 |
Mo | 0.45-6.00 | 5.233 |
Typical weld metal properties
- | AWS Spec | Weld Metal |
|---|---|---|
Ultimate tensile strength (psi) | 80,000 min | 98,900 |
Yield Strength (psi) | 67,000 min | 80,300 |
Elongation in 2" (%) | 19% min | 23% |
