E309L-15 / E309L-17

AWS A5.4 E309-15, E309L-15 | ASME SFA 5.4 E309-15, E309L-15
AWS A5.4 E309-17, E309L-17 | ASME SFA 5.4 E309-17, E309L-17

309L  stainless steel electrodes are 24% chromium and 13% nickel filler which is the same as 309, except for the reduced carbon amount. Low carbon alloys reduce the possibility of inter-granular carbide precipitation while providing a good crack resistance. These all-position rods have easy strike and re-strike with spatter-free arc, self-releasing slag leaving a smooth bead appearance to slightly concave/flat. 309L electrodes may also be a good choice when welding stainless to carbon steels. 309L has a wider welding current range and may be used in all-position however with the slower freezing slag care should be used out of position but in flat and horizontal yields a smooth arc transfer. Slight weave may be needed for vertical up

TYPICAL WIRE CHEMISTRY (%)

-

AWS SPEC

E309L-15

E309L-17

C

0.04

0.036

0.019

Cr

22.0-25.0

24.77

22.77

Ni

12.0-14.0

13.07

12.67

Mo

0.75

0.074

0.088

Mn

0.5-2.5

1.72

0.75

Si

1.00

0.482

0.82

P

0.04

0.024

0.024

S

0.03

0.012

0.017

Cu

0.75

0.094

0.094

Typical weld metal properties

-

AWS Spec

E309L-15

E309L-17

Ultimate tensile strength (psi)

80,000 min

84-93,480

83-92,780

Yield Strength (psi)

N/A

64-71,000

62-68,000

Elongation in 2" (%)

30% min

37.4%

45.4%

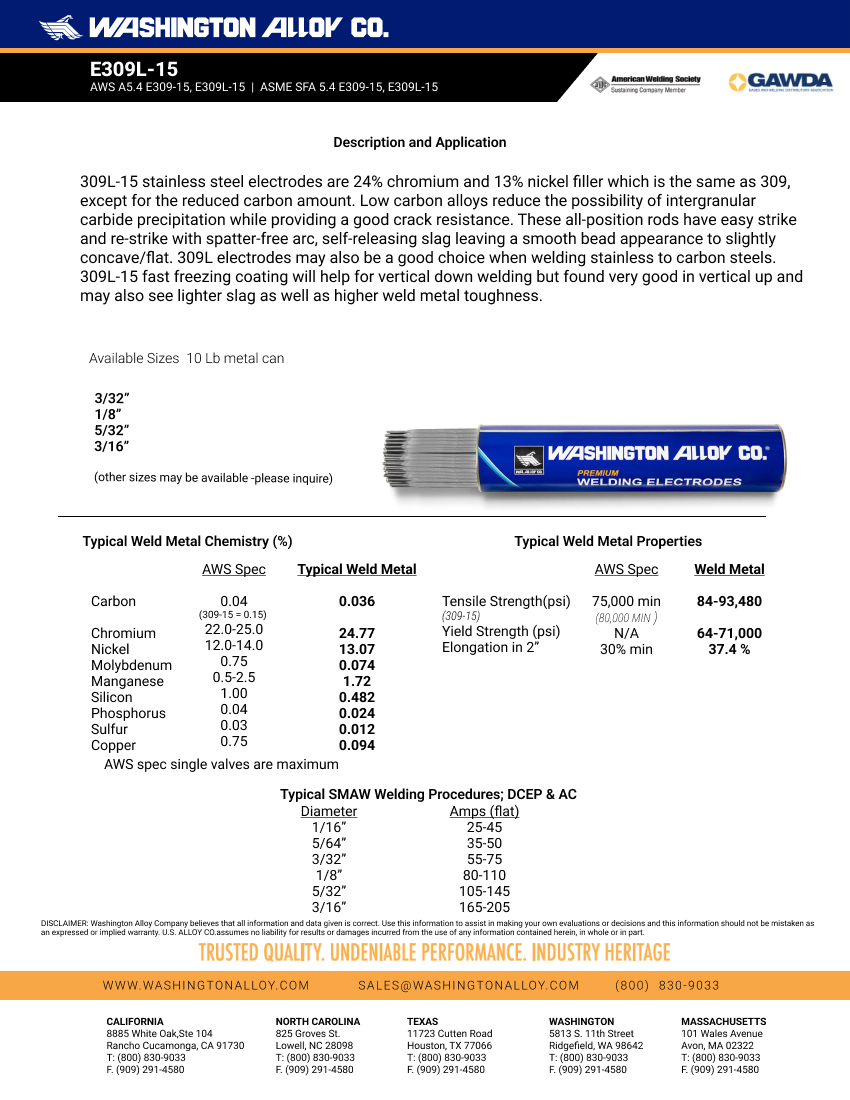

Download product sheets (E309L-17) | (E309L-15)
