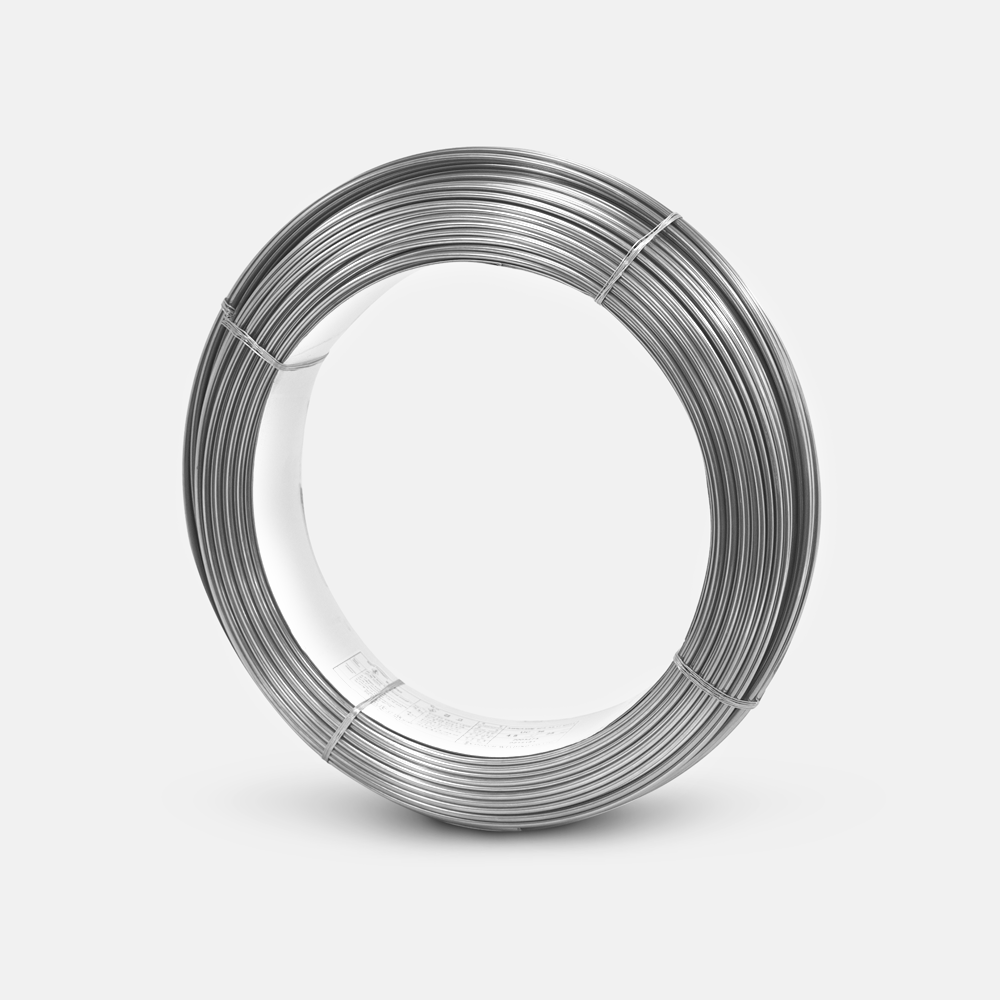

ER309L

AWS A5.9 ER309L
ASME SFA 5.9 ER309L

ER309L is similar to ER309 but contains an average .02% carbon to provide a weld deposit that will offer good resistance against intergranular corrosion caused by carbide precipitation. ER309L is excellent for buttered passes and overlay work. Typical applications include those of ER309 welding wire.

TYPICAL WIRE CHEMISTRY (%)

-

ER309/309L

C

0.01

Mn

1.88

Si

0.42

Mo

0.08

Cr

23.03

Ni

13.74

Cu

0.11

P

0.02

S

0.001

N

0.062

TYPICAL MECHANICAL PROPERTIES OF WELD DEPOSIT (as welded)

Tensile strength (psi)

87,200

Yield strength (psi)

58,000

Elongation in 2"(%)

40
