ER5183

AWS A5.10 ER5183
ASME SFA 5.10 ER5183
UNS A95183

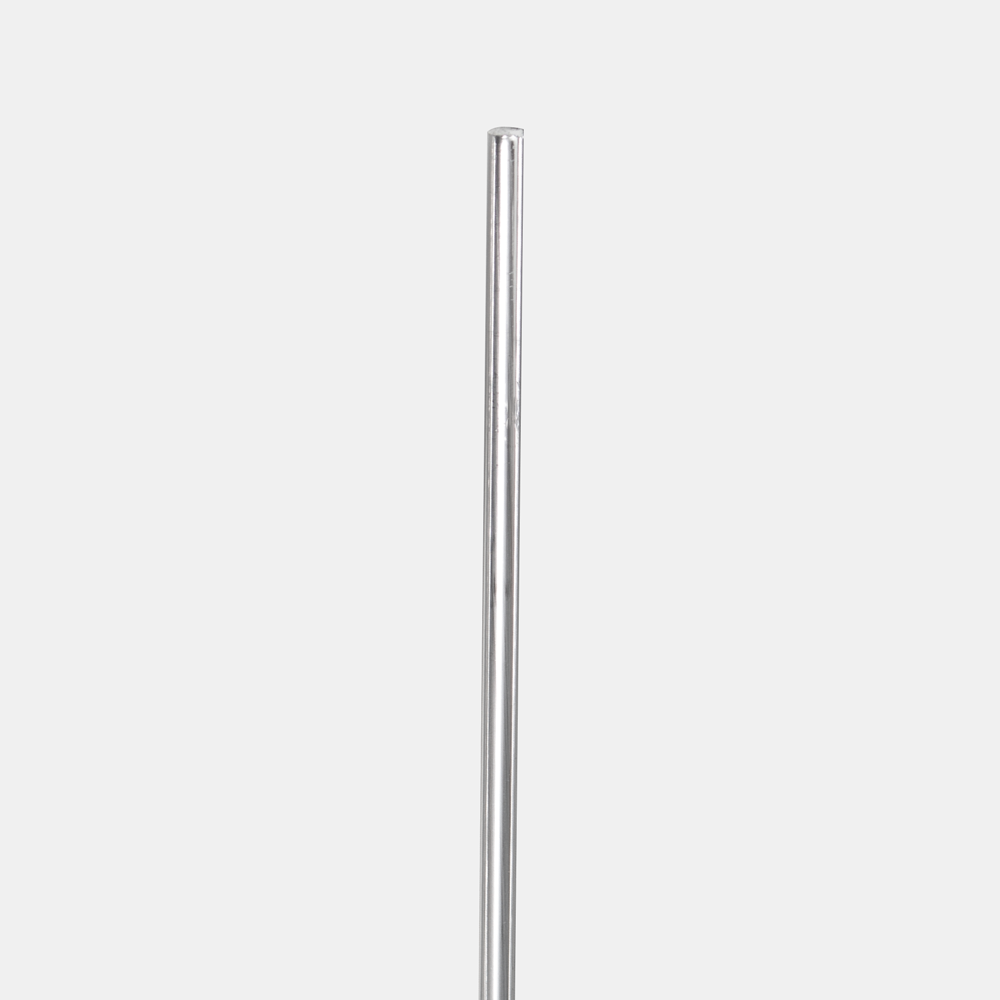

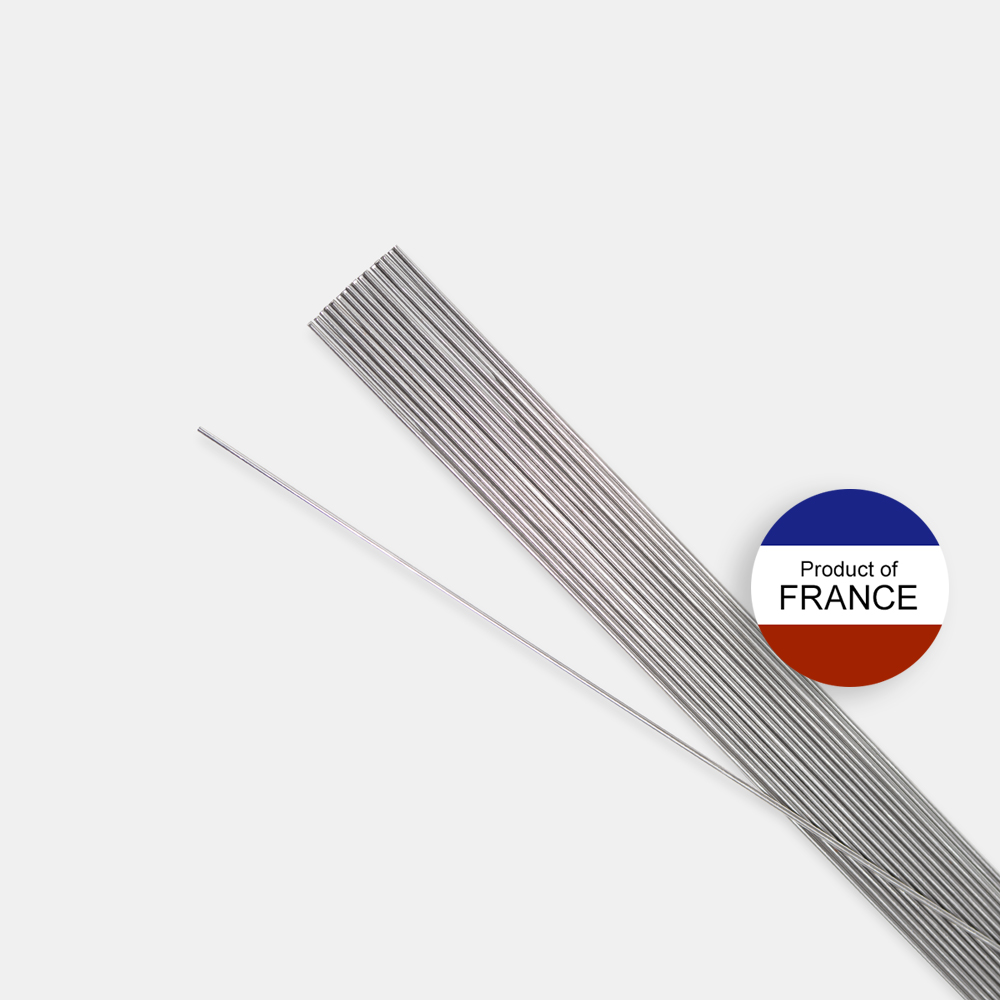

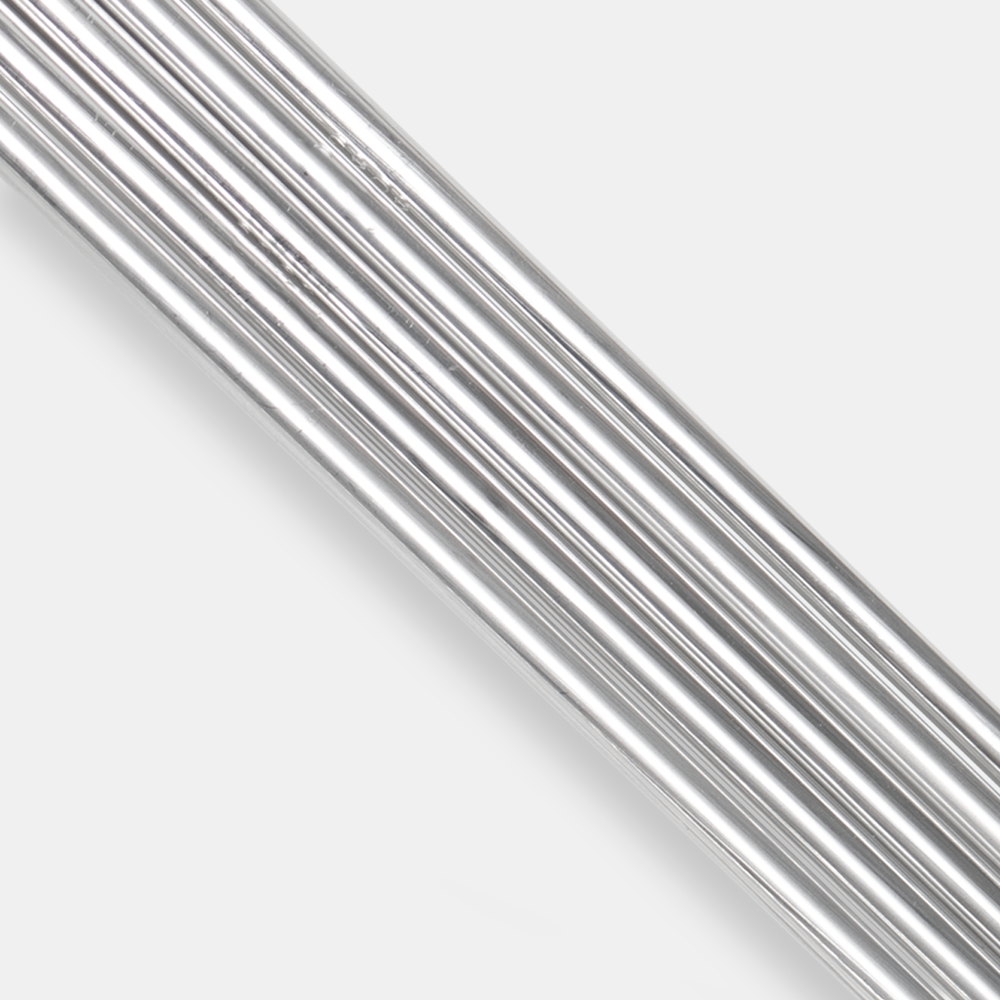

ER5183 (commonly referred to as AIMg 4.5 Mn) aluminum filler metal contains alloying elements 4.3-5.0% magnesium, 0.5-1.0% manganese as well as chromium and titanium. Available in spools or cut lengths for MIG or TIG processes, this alloy is commonly used on marine components, drilling rigs, cryogenics, railroad cars, storage tanks and unfired pressure
vessels. Base metals commonly welded include 5083, 5086 and 5456 to similar base metals or to 5052, 5652 and 5056. The post-anodizing color
tint is white. The approximate melting range is 1075°-1180°F and the average tensile strength as welded is 41,000 psi.

TYPICAL WELD METAL CHEMISTRY (%)

-

ER5183

Si

0.40 max

Fe

0.40 max

Cu

0.10 max

Mn

0.5-1.0

Mg

4.3-5.2

Cr

0.05-0.25

Zn

0.25 max

Ti

0.15 max

Al

Balance

Others*

0.15 total max

*Be shall not exceed 0.0008 percent.
