ER80S-B8
AWS A5.28 ER80S-B8
80S-B8 is a low alloy Cr-Mo air hardening filler commonly
used for high temperature and creep resistance needs often in the oil and chemical industries where base metal such as 9% Cr, 1% Mo steels are found. Typical base metals found in this group are ASTM/ASME grades: A/SA- 182-F9, A/SA- 199-T-9, A/SA- 213-T9, A217 C12, A/SA- 234 WP9, A/SA- 335-P9, A/SA- 336-P9, A/SA- 369-FP9, A/SA- 691 9CR, A/SA 989 9% chromium, A1012 T9 and A/SA- 387-Gr9. Controlled preheat, interpass and postheat treatment are needed. 80S-B8 is similar to the previously classified ER505 in AWS A5.9-93
TYPICAL WIRE CHEMISTRY (%)
- | AWS Spec | |
|---|---|---|
C | 0.10 max. | |
Mn | 0.40-0.70 | |
Si | 0.50 max. | |
P | 0.025 max. | |
S | 0.025 max. | |
Mo | 0.80-1.20 max. | |
Cr | 4.50-6.00 |
Typical mechanical properties of weld metal (C02 shielding gas)
- | ER80S-B6 | AWS Spec |
|---|---|---|
Yield strength (psi) | 68,000 min | |
Ultimate tensile strength (psi) | 80,000 min | |
Elongation in 2" (%) | 17 min | |
Charpy V-notch at 0 F (ft. lbs) | N/A |

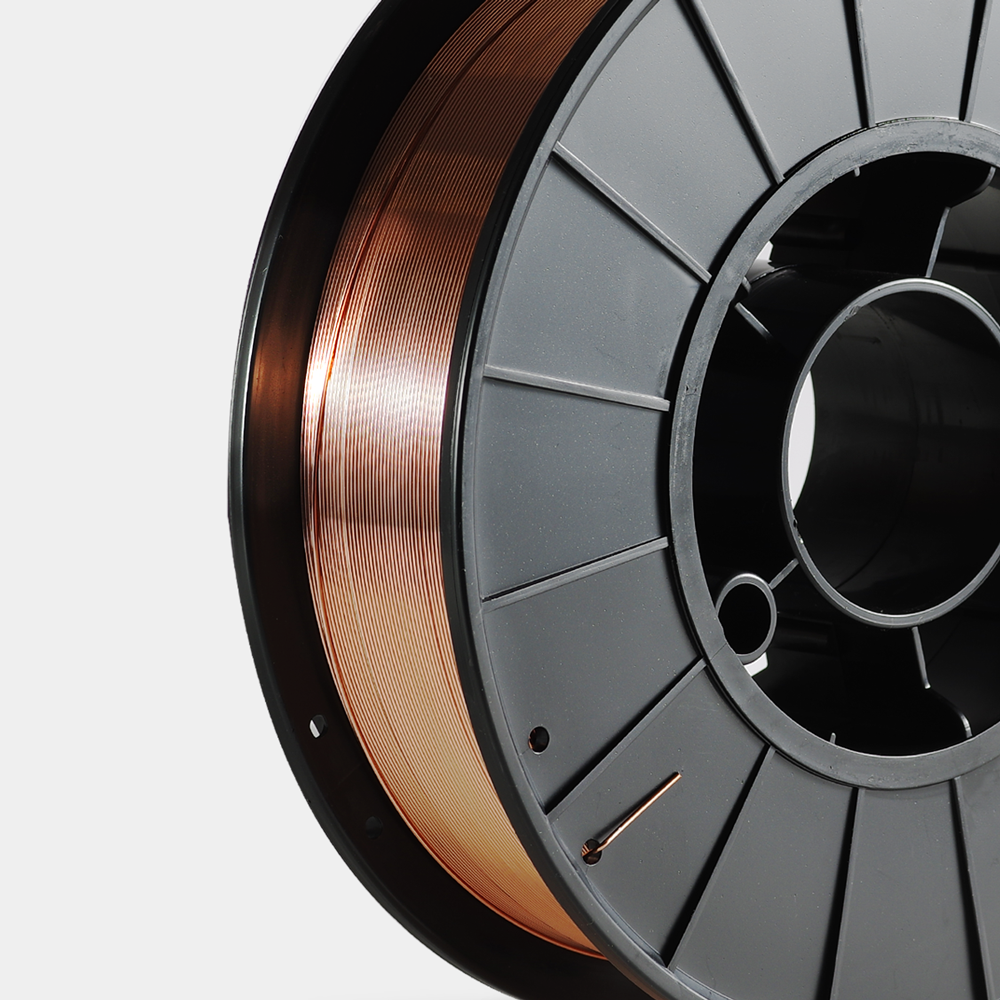

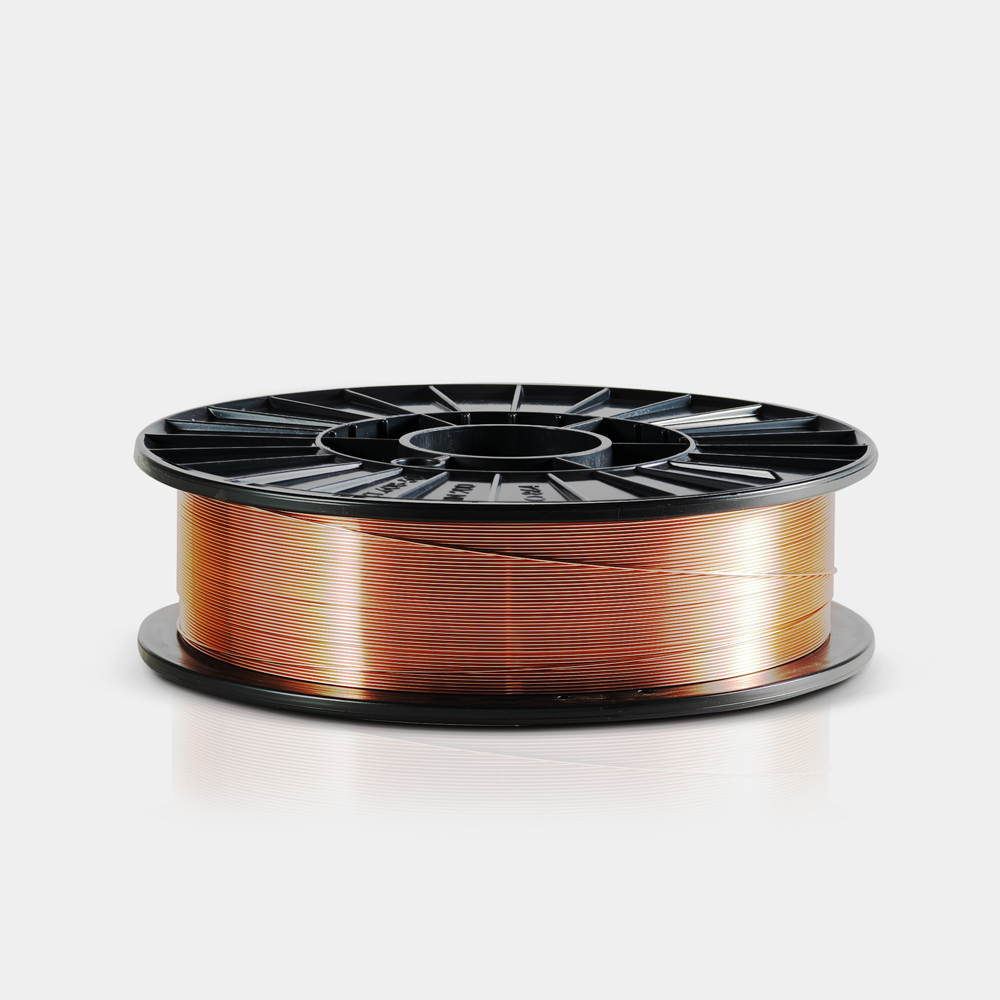

| WA Part No. | Description | UPC Code |
| TC 80S-B8 07 | ER80S-B8 .035 X 2 LB SPOOL | 034496964102 |
| TC 80S-B8 08 | ER80S-B8 .035 X 10 LB SPOOL | 034496964119 |
| TC 80S-B8 09 | ER80S-B8 .035 X 33 LB SPOOL | 034496950785 |
| TC 80S-B8 16 | ER80S-B8 .045 X 10 LB SPOOL | 034496964126 |
| TC 80S-B8 17 | ER80S-B8 .045 X 33 LB SPOOL | 034496950563 |
