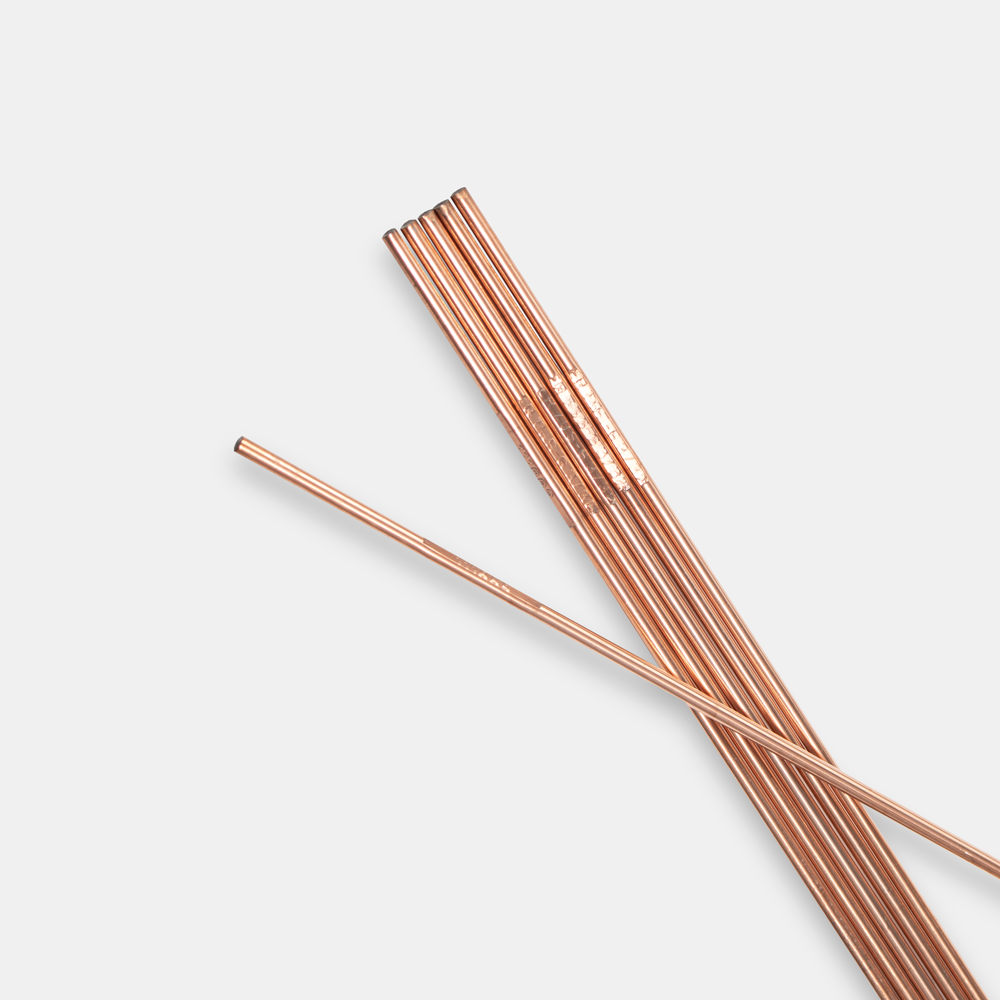

ER80S-D2
AWS A5.28 Class ER80S-D2
ER80S-D2 is designed to give high strength welds on high sulfur bearing (free- machining) steels or medium carbon steels. This wire contains additional amounts of manganese and silicon which, when alloyed with 0.50% molybdenum, produces weld deposits which have high ductility, excellent impact values and tensile strengths of approximately 100,000 psi. ER80S-D2 is commonly used on low carbon and low alloy steels such as AISI 4130 where the tensile strengths provided by plain carbon steel wires are inadequate. A well balanced silicon content gives this wire superior arc stability, a low spatter level and a flat bead with excellent appearance. ER80S-D2 produces X-ray quality, porosity free welds even over dirt, rust or mill scale.
Applications:
Farm implements, automotive parts, pipes, light-gauge steels, low alloy steels such as AISI 4130 and high yield steels such as T-1.
TYPICAL WIRE CHEMISTRY (%)
- | ER80S-D2 | AWS Spec |
---|---|---|
C | 0.080 | 0.07-0.12 |
Mn | 1.950 | 1.60-2.10 |
Si | 0.600 | 0.50-0.80 |
P | 0.012 | 0.025 max |
S | 0.012 | 0.025 max |
Ni | 0.020 | 0.15 max |
Mo | 0.50 | 0.40-0.60 |
Cu | 0.10 | 0.50 max |
Typical mechanical properties of weld metal (C02 shielding gas)
- | ER80S-D2 | AWS Spec |
---|---|---|
Yield strength (psi) | 84,000 | 68,000 min |
Ultimate tensile strength (psi) | 99,000 | 80,000 min |
Elongation in 2" (%) | 22 | 17 min |
Charpy V-notch at 0 F (ft. lbs) | 30 | 20 min |
Reduction of area (%) | 55 | - |
Average Brinell Hardness | 163 | - |
