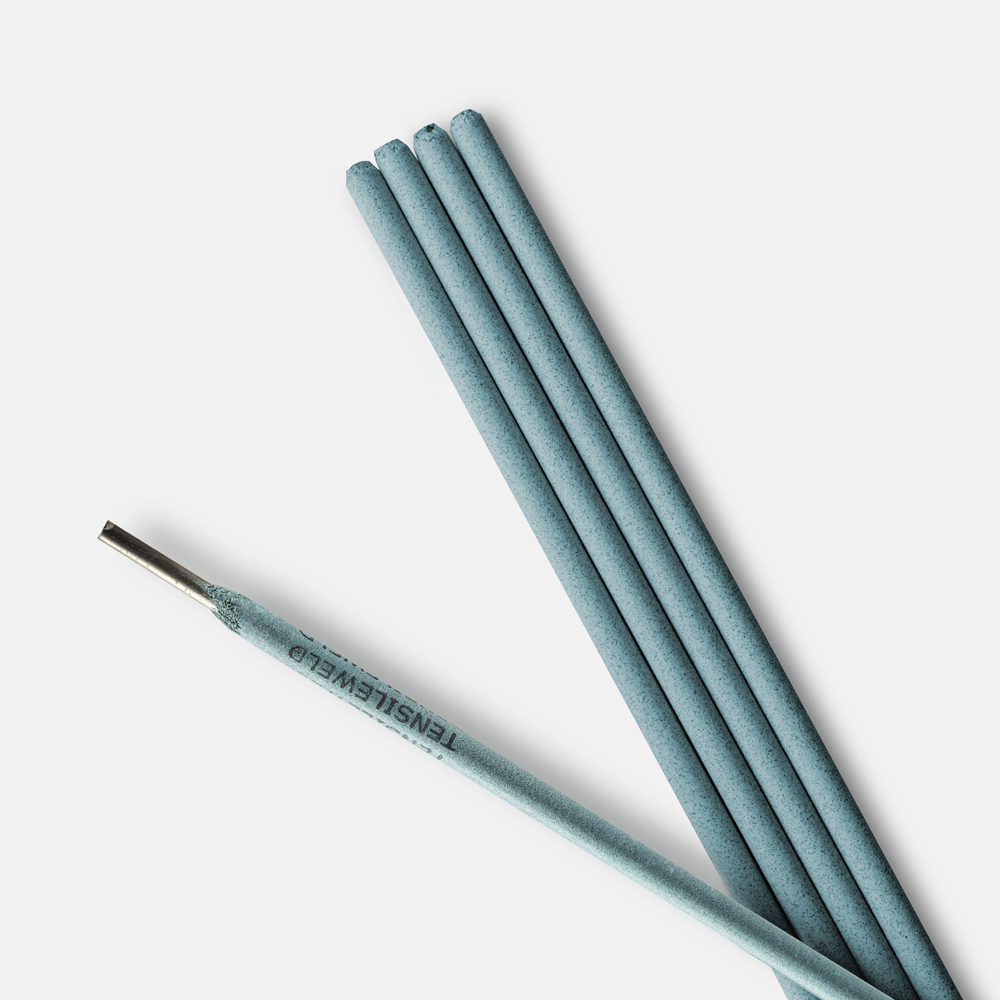

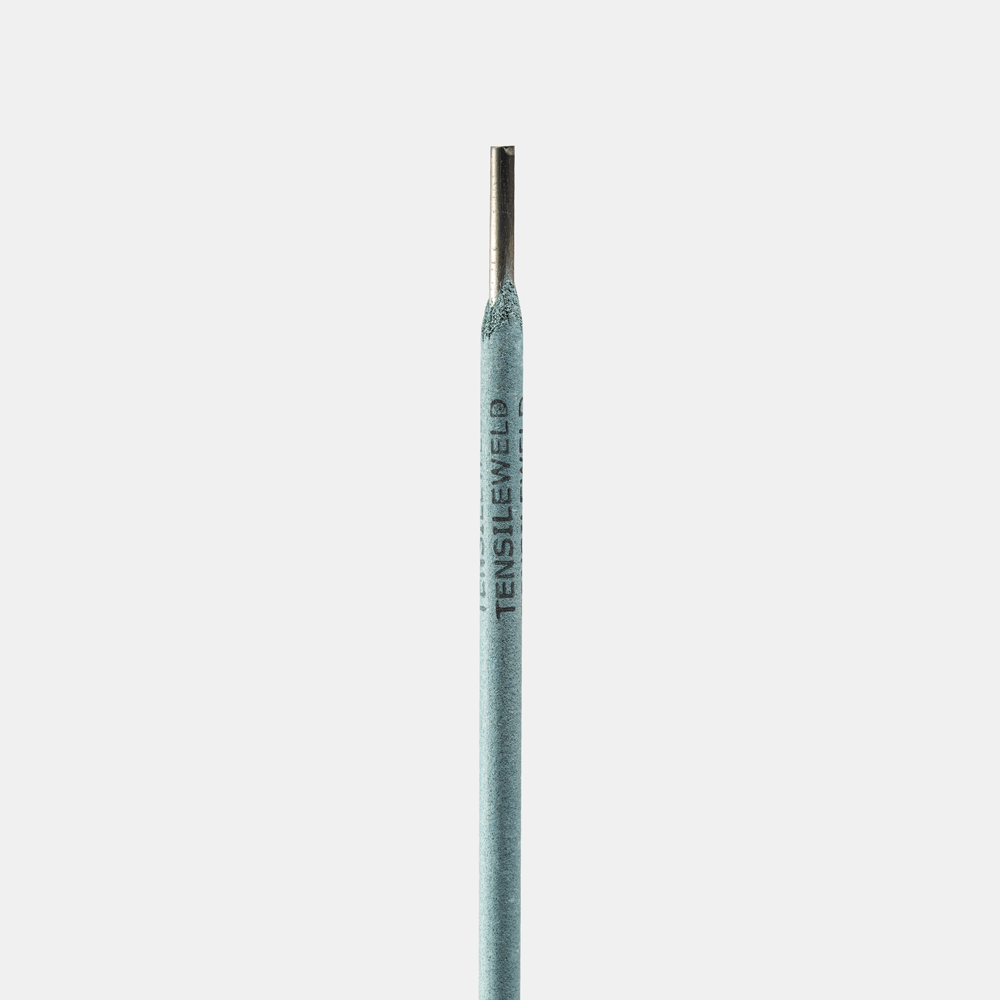

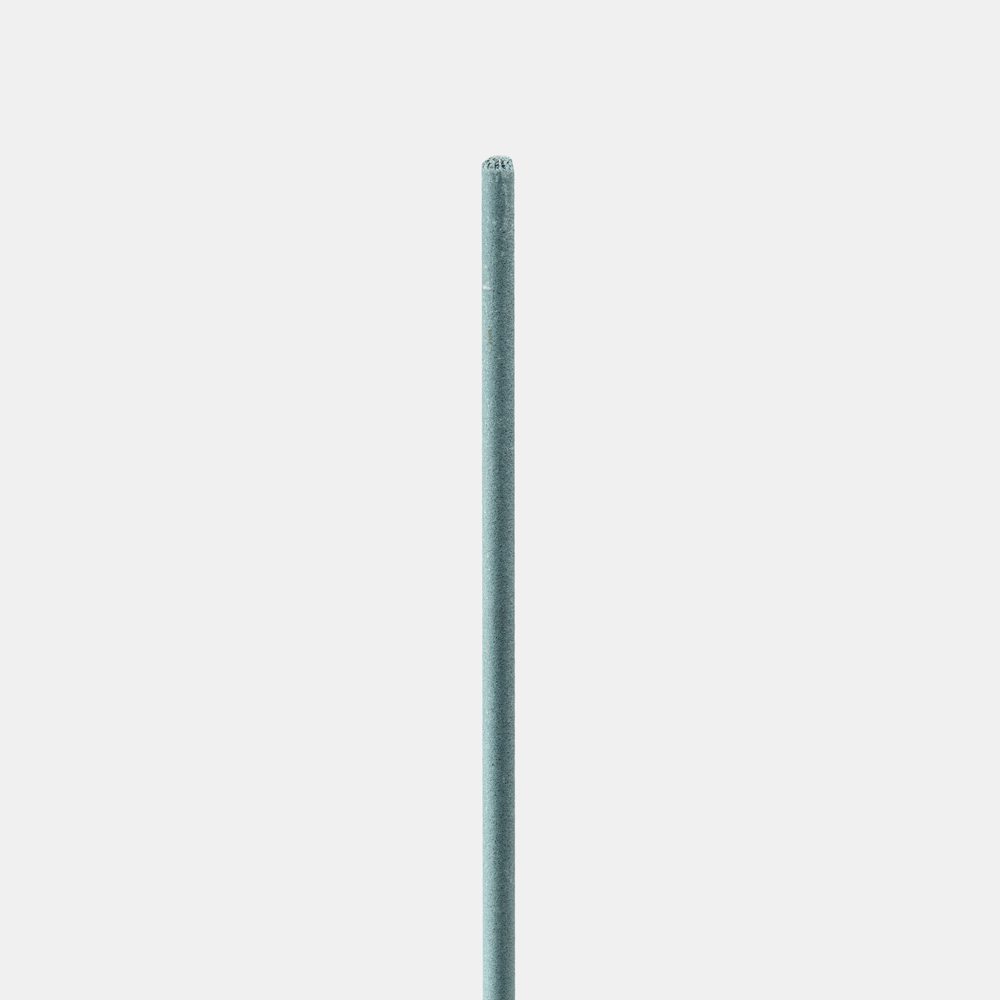

Tensileweld

Tensileweld is the ultimate AC-DC electrode to use where high strength and porosity-free welds are required. Weld deposits are impact, abrasion, heat and corrosion resistant. Tensileweld is especially formulated to weld dissimilar steels; high carbon, tool and die steels; stainless steels; spring and coil steels; pressure vessels and aircraft steels. It is the perfect electrode to use where the alloy content of the base metal is unknown. Typical applications would include the underlayment of hardfacing alloys in mining applications, rebuilding shafts and agitator blades in turbines, framed, cast steel parts and gears.

APPLICATIONS

Clean the work area. Thick sections should be
beveled. A preheat of 400ºF is recommended for carbon and cast steels. AC or DC reverse polarity is used. Maintain a short arc, slightly inclined in the direction of movement and use stringer beads. Peening is recommended.

CHARACTERISTICS

Tensileweld has a high deposition rate. Weld
deposits are smooth, ductile, porosity-free and
take on a shiny appearance.

TYPICAL MECHANICAL PROPERTIES OF WELD METAL (as welded)

Tensile strength (psi)

up to 120,000 psi

Yield strength

up to 90,000 psi

Elongation in 2" (%)

up to 30%

Hardness

200 Brinell

RECOMMENDED AMPERAGE (AC/DC+)

Sizes

Amperage

3/32 (2.4mm)

40-90

1/8 (3.2mm)

75-125

5/32 (4.0mm)

100-150

3/16 (4.8mm)

140-240

Packaging

6-10 lb. tubes in 60 lb. master carton
*Also available in 36″ straightened and cut lengths for TIG applications.
